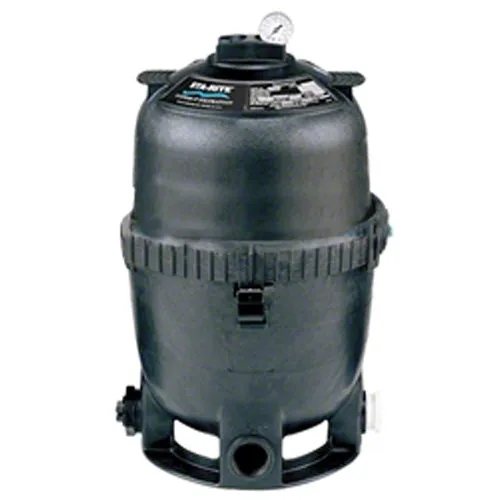

Sta-Rite System 2 Modular Media Filter PLM200

The System:2 Modular Media filter is ideal for small in-ground, above-ground pools and in-ground spas. This filter is a compact adaptation of patented System: 3 technology from Sta-Rite, so it handles dirt loads up to 15 times greater than sand filters of equivalent size. The result: you capture more dirt between cleanings and minimize time on maintenance.

The Modular Media filter contains a one-piece module that simply drops into an easily accessible tank. When cleaning is necessary, just remove the lid (no tools are necessary) and spray-rinse the module while it is still in place. It only takes minutes to thoroughly clean the filter and get back into service—fast.

Less maintenance . . . YES! The balanced-flow tank design directs water through both sides of the filter module which increases dirt-loading without clogging. Holding more dirt means a longer time between cleanings.

System 2 Modular Media Filter PLM200 Features:

• •200 Square Foot Effective Filtration Area
• 50 to 120 Gallon Per Minute Optimal Flow Rate
• Typical Installation – In-ground pools, in-ground hot tubs, and water features
• Balanced-flow tank design works in unison with the high capacity filter module to collect dirt over its entire surface—holds more dirt so you clean less often.
• Less frequent cleaning also increases filter module service life and lowers lifetime costs.
• Rugged composite construction resists corrosion and weathering.
• Compact design fits easily in tight installations and can be easily shielded from view.
• Durable two-piece tank housing constructed of rugged ABS thermoplastic to ensure a long-lasting tank life
• Posi-Ring® locking ring provides fast access to tank internals
• Complete media coverage combined with shallow pleats means greater dirt holding capabilities, resulting in longer filter cycles and less cleaning
• Filter includes 2" NPT Drain ports, which are provided with reducer bushing and 1-1/2" drain plug
• Top-mounted pressure gauge and information panels are positioned for easy reading.

Sta-Rite PLM200
